Newly Designed Automatic Temperature and Humidity Control Industrial Desiccant Dehumidifier RH≤20%
Quick Details:
Dehumidifying Mode: Cooling combined with Wheel
Desiccant Rotor: Import
Desiccant Material: Silica Gel Wheel
Rated Process Airflow: 6000m³ /h
Supply Air Parameters: T≤20℃, RH≤20%
Dehumidification Efficiency: High
Installed Power: 49.1kw
Voltage: 380V, 3 phase, 50Hz or customized
Certification: ISO9001:2015
Features: Economical, energy-saving
Usage: Air temperature and humidity control
General Description:
Industrial Desiccant Wheel Dehumidifier removes humidity using both cooling coil and a desiccant wheel, so it can both control the humidity and temperature of the air independently in one package unit.
Operating Principles:
Supply Air Stream
Outside air is drawn into the unit using the supply fan. The warm, moist outside air first passes through filters and then the cooling coil where it is cooled. The air then goes through the desiccant wheel where the air is dehumidified and the temperature is raised. At last the air is delivered directly to the space or into an existing air handler.
Exhaust Air Stream
Exhaust air is used to provide energy recovery for the desiccant wheel and is drawn into the unit using the exhaust fan. The air filtered and then heated and humidified during the energy recovery process. The air is then heated while passing through the regeneration coil. The heated air removes the moisture that the desiccant wheel adsorbs from the process air stream.
Applications:
- War Industry, Scientific Research, Electric Power Transportation
- Lithium Battery Industry, Biotechnology Pharmaceutical Industry
- Chemical, Daily Chemical Industry, Food Beverage Industry
- Safety Glazing Material Industry, Tyre and Rubber Industry
- Medical Instrument, Vegetables Frozen, Precise Instrument
- Wood Goods, Shipbuilding Painting Industry, Kinds of Storage
Specifications:
| Model | ZCB-6000 |
| Total Process Airflow (m3/h) | 6000 |
| Required Room Condition | T≤20℃, RH≤20% |
| Fresh Airflow (m3/h) | 600 |
| First Recirculated Airflow (m3/h) | 5400 |
| Rotor Process Airflow (m3/h) | 6000 |
| Rotor Reactivation Airflow (m3/h) | 2000 |
| Supply Air Parameters | T=15℃, RH≤20% |
| Reactivation Temperature | 120±10℃ |
| Reactivation Heating Power (kw) | 42 |
| Reactivation Fan Power (kw) | 1.5 |
| Blower Power (kw) | 5.5 |
| Driving Motor Power (kw) | 0.1 |
| Cooling Load (kw) | 74.1 |
| Chilled Water Consumption(T/h) | 12.7 |
| Powder Supply | 380V/3P/50Hz |
| Installed Power (kw) | 49.1 |
| EPS(Pa) | ≥750 |
Competitive Advantage:
- Import silica gel wheel
- A totally self contained unit
- PLC + HMI automatic control system
- Aluminum alloy frame, anti-cold bridge
- Body modularization design, foam injected double wall casing
- Process and reactivation air flow sectors are insulated
- Electric or steam heating or convert type can be available
- All operation parameters can be on-line observed, ensuring operation reliability
- High temperature safety thermostat cutout
- Electrical interlocking of fan motors, heaters and rotor driving
We can provide technical design and suitable dehumidifier according to your requirements.
|
|

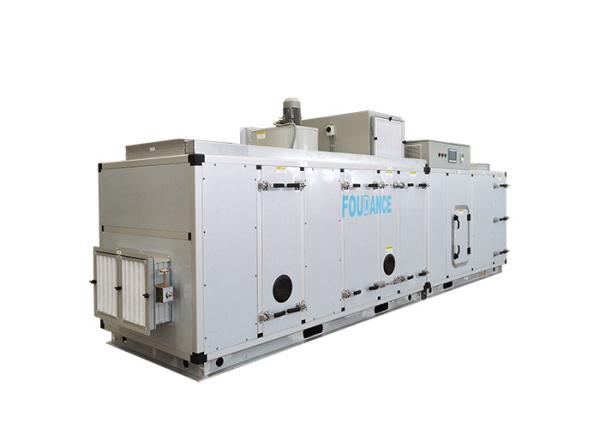

Newly Designed Automatic Temperature and Humidity Control Industrial Desiccant Dehumidifier RH≤20% Images
|
